16 11 060 Removing and installing or replacing fuel filler pipe (N20, N55, N63, N52, S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Before starting the engine for the first time:

Fill fuel tank with at least 5 liters of fuel.
Check earth connection at fuel filler neck to body for continuity. If necessary, clean contact surface between body and fuel filler pipe screw connection.

Necessary preliminary tasks:

Draw off FUEL from fuel tank
Remove REAR RIGHT WHEEL ARCH TRIM

Unhook retaining strap (1) from tank flap.

Open cap and set to one side.

Fig 1: Identifying Retaining Strap From Tank Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nut (1).

Installation note:

Check plastic nut (1), replace if necessary.

Tightening torque 16 12 2AZ .

Unclip line clip (2).

Release snap fasteners (3).

Release hexagon nut (4).

Installation note:

Tightening torque 16 12 2AZ .

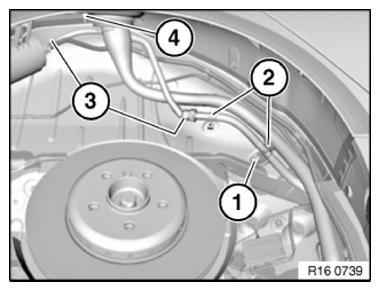

Fig 2: Identifying Plastic Nut, Hexagon Nut And Snap Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There may be residual amounts of fuel in the fuel tank!
Catch escaping fuel in a suitable collecting vessel.

Unfasten hose clamp (1).

Installation note:

Check hose clamp, replace if necessary.

Tightening torque 16 12 1AZ .

Remove fuel filler pipe.

Fig 3: Identifying Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release ear hose clamp (1).

Installation note:

Replace ear hose clamp

Detach filler hose (2) from fuel filler pipe (3).

Fig 4: Identifying Ear Hose Clamp, Filler Hose And Fuel Filler Pipe

Courtesy of BMW OF NORTH AMERICA, INC.
