64 22 138 Removing and installing/replacing right fresh-air grille

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT

Release screws (1).

Pull out right fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove right fresh-air grille (2).

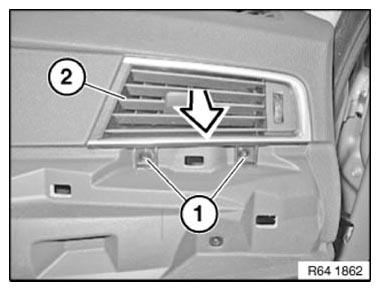

Fig 1: Removing Right Fresh-Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture for example purposes only!

Installation:

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh air duct behind.

Fig 2: Identifying Fresh-Air Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
