64 11 263 Removing and installing/replacing rear compartment blower

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER ARMREST

Release screws (1).

Unfasten plug connection (2) and disconnect.

Feed out rear compartment blower (3) in direction of arrow, stating in front, from center console.

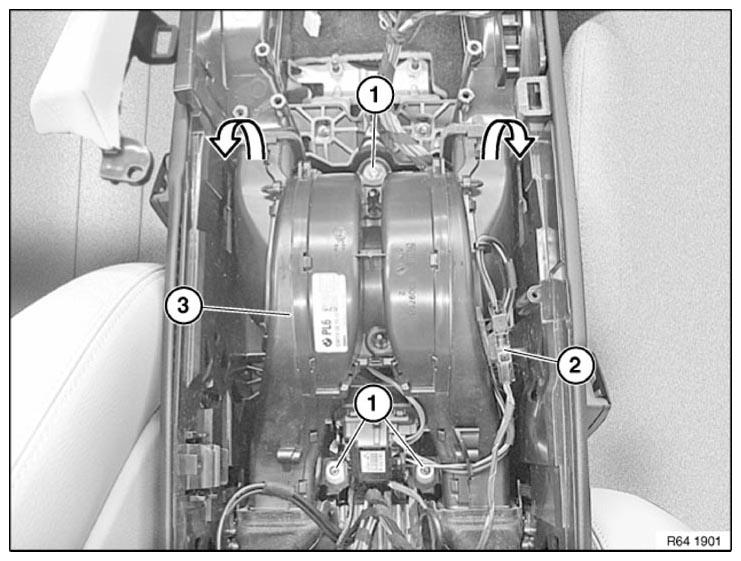

Fig 1: Removing Rear Compartment Blower

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove REAR COMPARTMENT BLOWER CONTROLLER .
