51 16 195 Removing and installing/replacing center armrest

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER ARMREST STORAGE COMPARTMENT
Automatic transmission models only:
- Remove GEAR SELECTOR SWITCH TRIM

Release screws (2) on trim (1).

Remove trim (1) upwards.

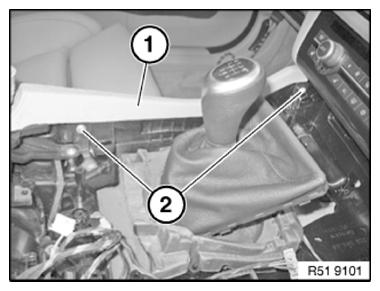

Fig 1: Identifying Center Armrest Trim And Screws

G09925876

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission models only:

NOTE: For purposes of clarity, illustration does not show gear selector lever.

Release screws (3).

Tightening torque 51 16 4AZ .

Release screws (2) on carrier housing (1).

Raise carrier housing (1) and disconnect plug connection.

Lay aside carrier housing (1) including gear selector switch.

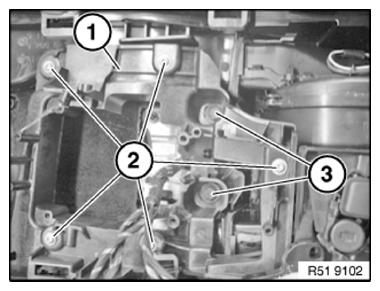

Fig 2: Identifying Carrier Housing

G09925877

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) from center armrest frame (1) and remove frame.

Replacement

REBUILD CENTER ARMREST LOCK .

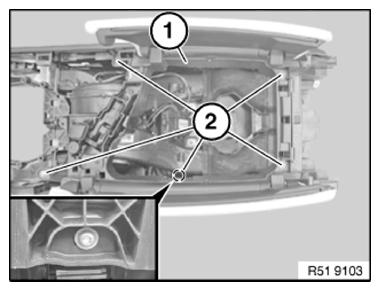

Fig 3: Identifying Center Armrest Frame Screws

G09925878

Courtesy of BMW OF NORTH AMERICA, INC.
