64 53 551 Removing and installing/replacing capacitor for air conditioning system (S63)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Danger of injury!
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety instructions:
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety instructions:
- Observe SAFETY INFORMATION for handling refrigerant and refrigerant oil.
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow notes for OPENING AND REPLACING PARTS in refrigerant circuit.
If air conditioning system is opened for more than 24 hours: Replace DESICCANT INSERT FOR AIR CONDITIONING
Restart engine only when A/C system has been correctly filled.
Follow notes for OPENING AND REPLACING PARTS in refrigerant circuit.
If air conditioning system is opened for more than 24 hours: Replace DESICCANT INSERT FOR AIR CONDITIONING
Necessary preliminary tasks:
- DRAIN OFF AIR CONDITIONING SYSTEM
- REMOVE transmission oil cooler
IMPORTANT:
Risk of damage!
Ribs on capacitor are not to be damaged.
Ribs on capacitor are not to be damaged.

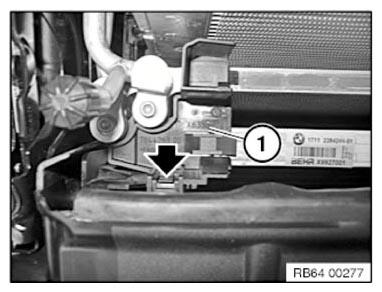

Unlock the right holder (1) at the mark and feed out toward the top right.

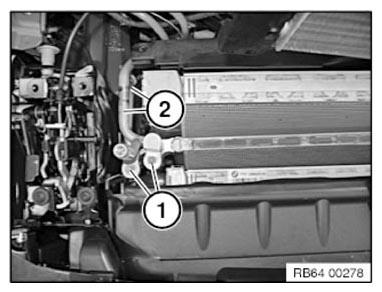

Release screws (1).
Tightening torque 64 53 3AZ .
Remove air conditioning lines (2) and set aside.
Installation note:
Replace sealing rings.
Use special tool 00 9 030 to install sealing rings without damaging them.

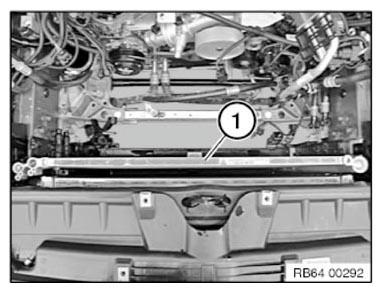

Lift out capacitor (1).
After installation:
