17 22 010 Removing And Installing/Replacing Transmission Oil Cooler For Automatic Transmission (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

Drain COOLANT .
Remove INTAKE SILENCER HOUSING .

Recycling

Catch and dispose of drained coolant in a suitable container.

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission oil in a suitable container.

Observe country-specific waste disposal regulations.

Press in latch mechanism on intake silencer housing.

Release screw (2).

Feed out intake port towards top.

Fig 1: Pressing Latch Mechanism On Intake Silencer Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach coolant hose (1).

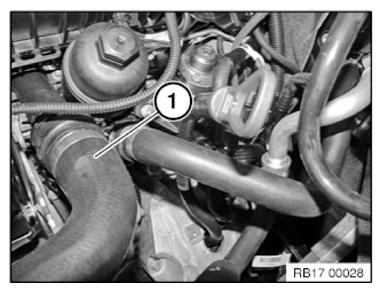

Fig 2: Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The transmission oil cooler is located in the oil filter housing.

Release screw (1).

Pull transmission oil lines off of transmission oil cooler and close with suitable plugs.

Installation note:

Replace sealing rings.

Unlock and detach coolant hose (2).

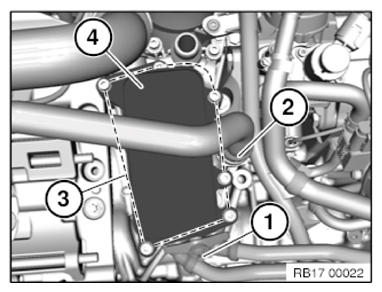

Fig 3: Screw, Coolant Hose And Transmission Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts along line (3).

Tightening torque: 17 10 9AZ .

Remove transmission oil cooler (4).

Installation note:

Replace gaskets (1) on thermostat housing.

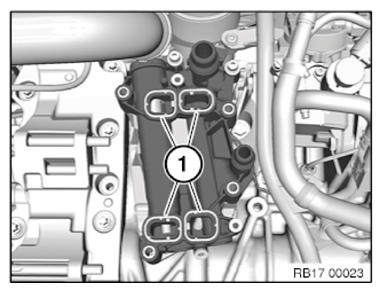

Fig 4: Gaskets On Thermostat Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check OIL LEVEL in automatic transmission. If necessary, top up automatic transmission oil.
