17 11 120 Removing And Installing/Replacing Charge Air Cooler (S63, B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: When carrying out repair work on the coolant circuit, protect the alternator from dirt contamination.

Cover alternator with suitable materials.

Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary tasks:

Remove CAPACITOR .
Drain coolant for charge air cooler.

Release and disconnect coolant hoses (1).

Release lock (2).

Pull lines (3) with holder upwards.

Fig 1: Coolant Hoses, Lines And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

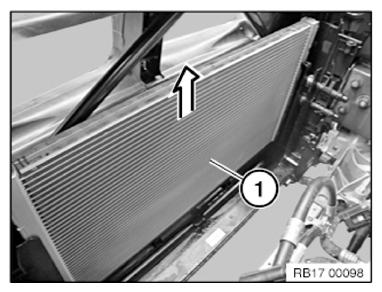

Lift out radiator for charge air cooler (1).

Fig 2: Lifting Out Radiator For Charge Air Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

After completing repair work, top charge air cooler up with coolant.

Vent COOLING SYSTEM FOR CHARGE AIR COOLER .

Check cooling system for tightness.

Assemble engine.
