17 11 040 Removing And Installing/Replacing Thermostat Inserts (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Recycling

Catch and dispose of drained coolant in a suitable container.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Remove GEARBOX OIL COOLER .

Release screws (1).

Tightening torque: 17 22 10AZ .

Remove thermostat housing with thermostat (2).

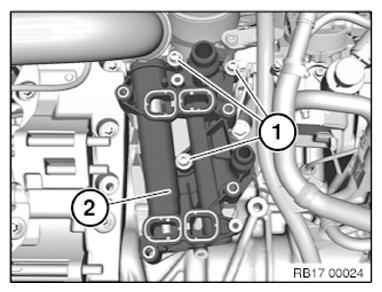

Fig 1: Thermostat Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace the seals (1) on the oil filter housing.

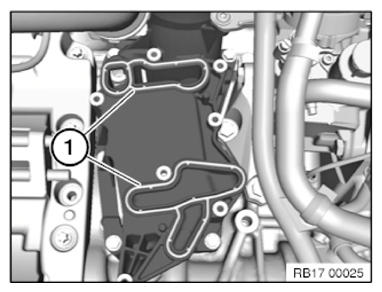

Fig 2: Seals On Oil Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
