17 11 015 Removing And Installing/Replacing Auxiliary Coolant Cooler (N57 D30 O/T/S 0/1)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove the right FRONT SECTION OF THE WHEEL ARCH COVER .
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Wear safety goggles and protective gloves.
Recycling:
Coolant emerges when coolant lines are detached. Catch and dispose of escaping coolant in a suitable container.
Observe country-specific waste disposal regulations.

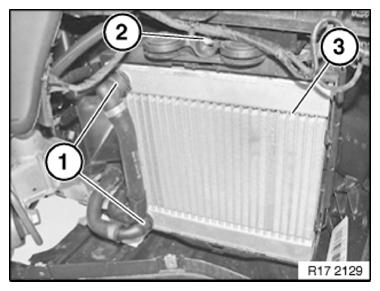

Detach coolant lines (1).
Catch and dispose of escaping coolant.
Release screw (2).
Tightening torque: 17 10 8AZ .
Removing auxiliary coolant cooler (3).
NOTE:
After completion of repair work, check coolant level.
If necessary, add coolant . See 17 00 005 DRAINING AND ADDING COOLANT (N57 D30 U/O/T 0/1) or 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT .
Reassemble the vehicle.
If necessary, add coolant . See 17 00 005 DRAINING AND ADDING COOLANT (N57 D30 U/O/T 0/1) or 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT .
Reassemble the vehicle.
