61 31 321 Removing and installing radio and A/C control panel

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

IMPORTANT: Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.

Necessary preliminary tasks:

DECORATIVE STRIP ON DASHBOARD, RIGHT

NOTE: Picture for example purposes only!

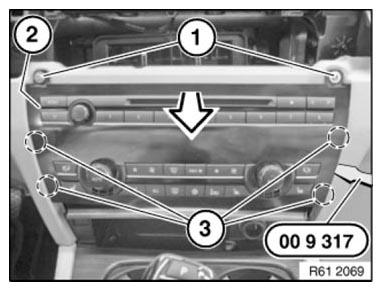

Release screws (1).

Carefully lever out radio and A/C control panel (2) with special tool 00 9 317 at points (3) in direction of arrow.

IMPORTANT: Assign keypad depending on optional equipment .

Fig 1: Removing Radio And A/C Control Panel With Special Tool (00 9 317)

G06895041

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove radio and A/C control panel (2).

Fig 2: Identifying A/C Control Panel And Plug Connection

G06895042

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

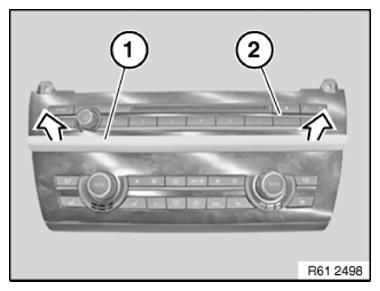

Pull off outer decorative trim (1) starting from radio and IHKA controls (2).

Installation note:

Retaining lugs on decorative trim (1) must not be damaged.

Fig 3: Pulling Outer Decorative Trim Starting From Radio And IHKA Controls

G09928807

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
