61 31 172 Removing and installing/replacing switch for electromechanical parking brake

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault entries)
Remove CENTER CONSOLE COVER

Release screws (1).

Remove switch for electromechanical parking brake (2) from center console trim (3).

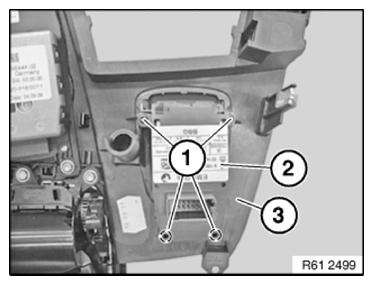

Fig 1: Identifying Center Console Trim And Screws

G09925931

Courtesy of BMW OF NORTH AMERICA, INC.

Only for M5 with twin-clutch gearbox

Release screws (1).

Remove switch for electromechanical parking brake (2) from center console switch center (3).

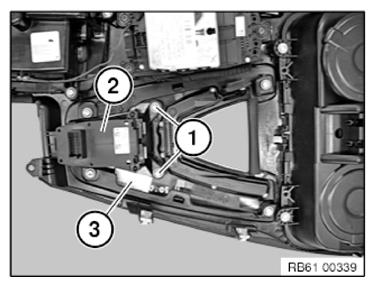

Fig 2: Identifying Center Console Switch Center And Screws

G09925932

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Release side catches (2).

Remove cover (3) from switch for electromechanical parking brake (4).

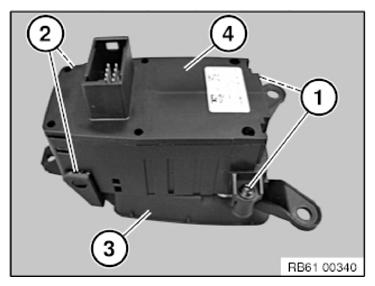

Fig 3: Identifying Side Catches And Screws

G09925933

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining elements (1) on cover (2) must not be damaged or missing.

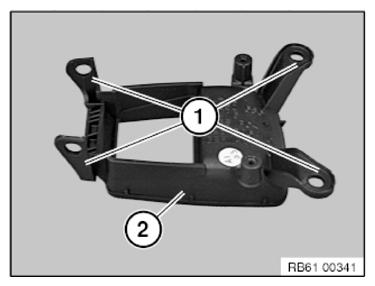

Fig 4: Identifying Retaining Elements On Cover

G09925934

Courtesy of BMW OF NORTH AMERICA, INC.
