61 35 954 Removing and installing/replacing interior antenna for comfort access system (rear center console)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR CENTER CONSOLE TRIM

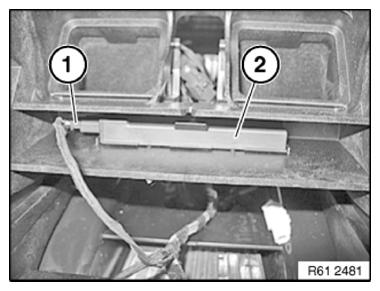

Disconnect plug connection (1).
Unclip interior aerial for Comfort Access System (2) and remove.
Installation:
Make sure interior aerial for comfort access system (2) is correctly seated.
