61 21 010 Remove and install or replace battery (Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!
The following points must be strictly observed prior to starting work :
De-energize the HIGH-VOLTAGE SYSTEM .
Observe SAFETY INFORMATION for handling hybrid cars.

WARNING: Observe the SAFETY INFORMATION for handling the battery.
Observe instructions for DISCONNECTING AND CONNECTING THE BATTERY .
Observe the notes on the (IBS) .

To ensure the correct safety and convenience functions, install only the original battery (battery size and type) stored in the vehicle order. OBSERVE NOTE ON BATTERY REPLACEMENT .

Necessary preliminary tasks:

Remove POWER DISTRIBUTION BOX
Disconnect NEGATIVE BATTERY LEAD

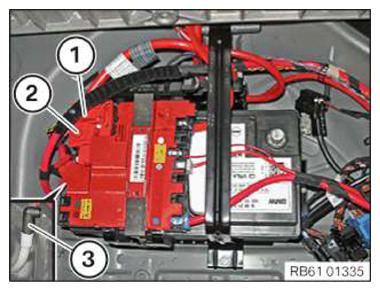

Fold back cover (1).

Slacken nut on safety battery terminal (2).

Tightening torque 61 21 1AZ .

Pull off the gas vent line (3).

IMPORTANT: Do not under any circumstances use force to pull or lever off safety battery terminal.

Pull off safety battery terminal (2) towards top, lay to one side and secure.

Fig 1: Identifying Safety Battery Terminal And Gas Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Always route degassing line (1) at a downhill gradient outwards to prevent any siphonic action!
Image A depicts an incorrect installation, Fig 2 depicts a correct installation.

Fig 2: Identifying Ventilation Line Correct And Incorrect Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove holder.

Tightening torque 61 21 5AZ .

Fig 3: Identifying Rear Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

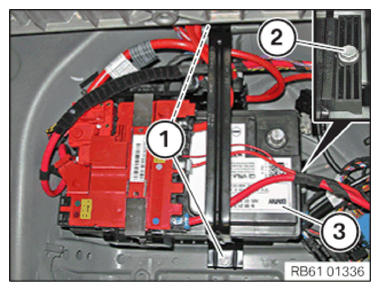

Release screws (1) and remove retaining bracket.

Tightening torque 61 21 5AZ .

Release screw (2) and remove holder.

Tightening torque 61 21 5AZ .

Remove battery (3).

Installation note:

Make sure battery is correctly seated in mounting.

Fig 4: Identifying Battery And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Vehicles with intelligent battery sensor (IBS)
REGISTER BATTERY REPLACEMENT

NOTE: If Check Control message is present:

Delete fault memory
