51 24 100 Removing and installing/replacing rear lid lock

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID

Unlock plug connections (1) and disconnect.

Release screws.

Tightening torque 51 24 1AZ

Feed out rear lid lock.

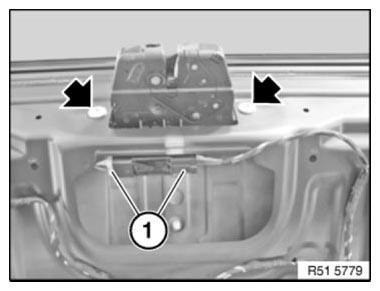

Fig 1: Locating Rear Lid Lock Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

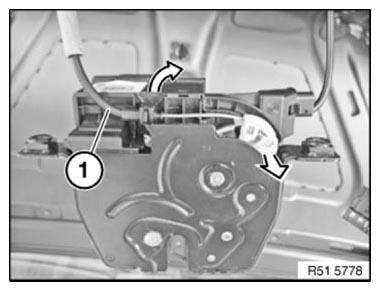

Unclip Bowden cable sleeve (1).

Feed out Bowden cable nipple in direction of arrow.

Fig 2: Removing Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
