51 34 380 Remove and install/replace frame trim on window frame of (outer) rear door on the left or right

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Do not scratch or damage visible surfaces.

Necessary preliminary work

Remove GASKET FOR DOOR GAP/ROOF FRAME
Remove COVER ON WINDOW FRAME

Pull out rubber window seal in the frame trim area on the window border (1) (graphic shows removed status).

Lever out frame trim on window border (1) from the front beginning with special tool 00 9 325 .

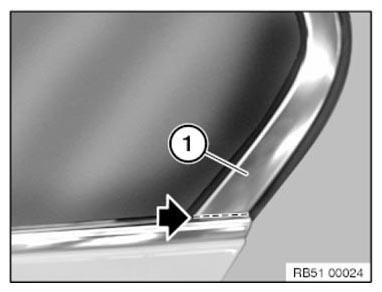

Fig 1: Pulling Rubber Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully pull off frame trim (1) in outwards direction.

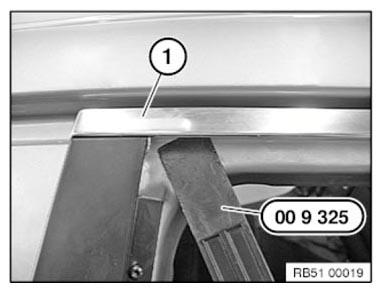

Fig 2: Pulling Window Frame Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clamps (1).

Fig 3: Identifying Window Frame Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only with vehicle type Saloon:

Feed in the frame trim on the window frame (1) at the rear correctly behind the weather strip.
