51 16 383 Removing and installing/replacing damper for glove box

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove RIGHT GLOVE BOX

NOTE: For clarification purposes, the damper rod has already been removed from the retaining bracket of the glove box cover the graphic.

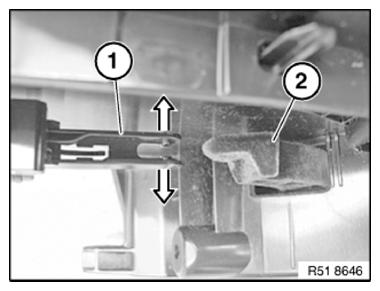

Unclip damper rod (1) in direction of arrow from retaining bracket of glove box cover (2) and slide back towards rear.

Fig 1: Removing Damper Rod

Courtesy of BMW OF NORTH AMERICA, INC.

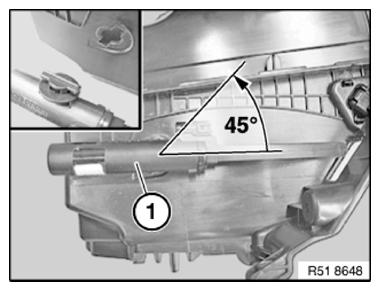

Turn damper (1) approx. 45° in direction of arrow and disconnect.

Fig 2: Identifying Damper Turn Angle

Courtesy of BMW OF NORTH AMERICA, INC.
