51 16 368 Replacing right glovebox with enclosure

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove DAMPER FOR GLOVEBOX

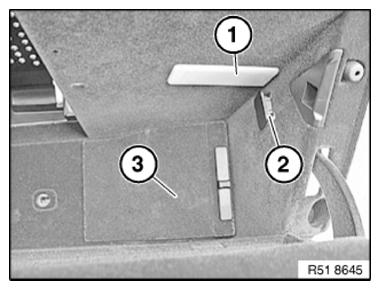

Modify glovebox light (1).

If necessary, modify cover (2)

Modify cover (3).

Fig 1: Identifying Glovebox Light And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

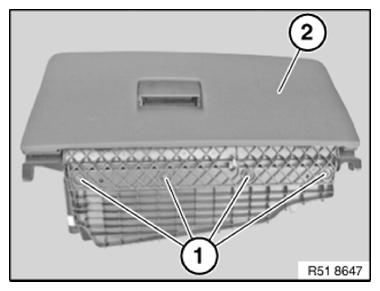

Release screws (1) on glovebox cover (2).

Remove glovebox cover (2).

Fig 2: Identifying Glovebox Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.
