51 16 063 Removing and installing/replacing interior mirror (as of 07/2011)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 °C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).

IMPORTANT: To avoid windscreen breakage:
When removing mirror base, never turn or disengage towards front or rear.

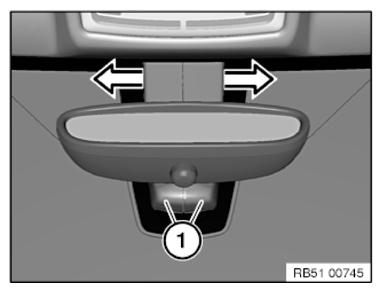

Unclip end caps (1) in direction of arrow using a suitable tool and remove.

Fig 1: Removing Interior Mirror End Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

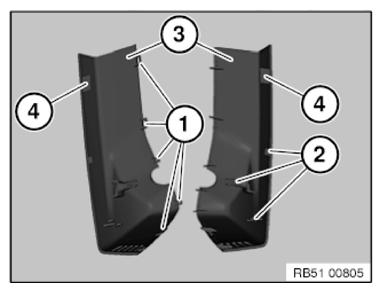

Latch mechanisms (1) and guides (2) on both end caps (3) must not be damaged.

For end caps (3) with tabs (4), the spacers must be bonded onto the tabs (4).

Fig 2: Identifying Interior Mirror Latch Mechanisms And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
When removing mirror base, never turn or disengage towards front or rear.

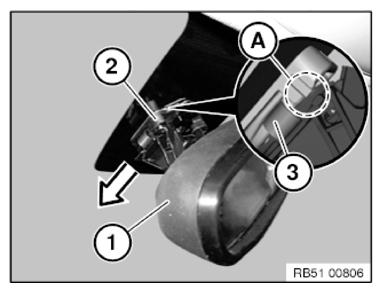

Interior mirror is held by clamp (3) and latch mechanism in area (A) on mirror base (2).

If necessary, disconnect plug connection on inside mirror (1).

Jerkily pull off inside mirror (1) parallel to windscreen from mirror socket (2).

Installation note:

Retaining clips (3) must not be bent or damaged.

Interior mirror (1) must engage correctly in mirror base (2) in area (A).

Fig 3: Removing Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

Version with compass:

Check compass function if replacing or after disconnecting inside mirror plug connection or battery.

If necessary, calibrate compass in interior rearview mirror.

Version with high-beam assistant without KAFAS (camera-based driver support systems):

Normalization or initialization is not necessary.

High-Beam Assistant is automatically aligned under the following conditions:

Driving on a motorway/ordinary road at night for approx. 50 km and
Clearly visible road markings

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
