51 23 220 Removing and installing/replacing Bowden cable for engine compartment lid at rear

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL FROM FOOTWELL A-PILLAR
Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING

Unclip clutch housing Bowden cable (1) at marked points.

Fig 1: Removing Clutch Housing Bowden Cable

G06885616

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clutch housing cover (3) in direction of arrow and fold back.

Feed rear Bowden cable (2) out of sliding block (1) and clutch housing (3).

Fig 2: Identifying Bowden Cable, Block And Clutch Housing

G06885617

Courtesy of BMW OF NORTH AMERICA, INC.

Footwell area, driver's side:

Lever Bowden cable (1) out of actuator for unlocking engine compartment lid (2).

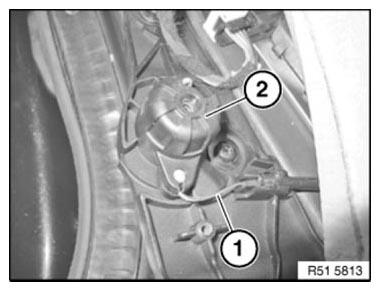

Fig 3: Identifying Engine Compartment Lid And Bowden Cable

G06885618

Courtesy of BMW OF NORTH AMERICA, INC.

Pull Bowden cable (1) out of bulkhead penetration (2).

Installation:

Make sure Bowden cable (1) is correctly laid.

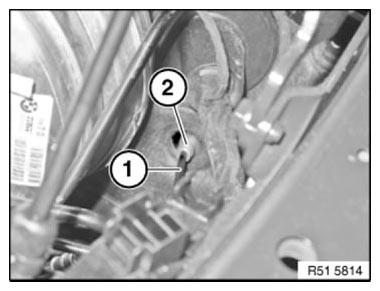

Fig 4: Identifying Bulkhead Penetration And Bowden Cable

G06885619

Courtesy of BMW OF NORTH AMERICA, INC.
