51 47 316 Removing and installing/replacing carpet for rear passenger compartment

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Remove both front seats . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE
Remove REAR SEAT
Remove TRIM PANEL FOR DOOR POST, BOTTOM left/right
Remove COMPLETE CENTER CONSOLE
Remove cover for central bass speaker . See 65 12 053 REMOVING AND INSTALLING/RENEWING CENTRAL BASS SPEAKER - PASSENGER'S SIDE - (UNDER FRONT SEAT) or 65 12 051 REMOVING AND INSTALLING/RENEWING CENTRAL BASS SPEAKER - DRIVER'S SIDE- (UNDER FRONT SEAT) left/right

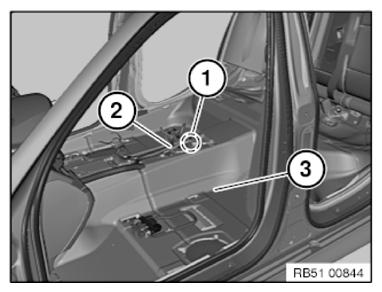

Release nut (1) and remove cable (2) from carpet (3).

Feed out carpet (3) to rear/top.

Fig 1: Identifying Passenger Compartment, Cable And Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

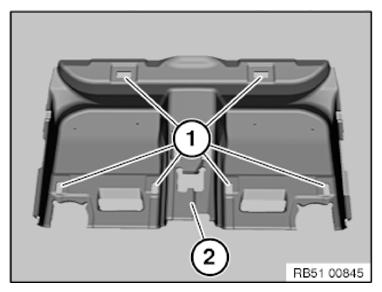

Apertures (1) serve as alignment points when fitting carpet (2).

Fig 2: Identifying Passenger Compartment Apertures And Carpet

Courtesy of BMW OF NORTH AMERICA, INC.
