33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right (M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Unscrew nuts (1).

Tightening torque 33 55 2AZ .

Remove anti-roll bar link (2).

Installation note:

Replace nuts (1).

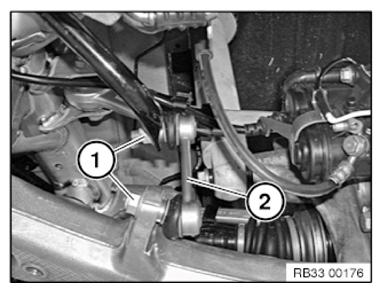

Fig 1: Identifying Nuts And Anti-Roll Bar Link
G09927228Courtesy of BMW OF NORTH AMERICA, INC.
