33 10 053 Removing and installing/replacing temperature sensor

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning if exhaust system is touched!
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Have new part ready to avoid unnecessary escape of differential oil.

Disconnect plug connection (1).

Loosen temperature sensor (2) from oil sump (3).

Installation note:

Tightening torque 33 11 6AZ .

Clean rear differential.

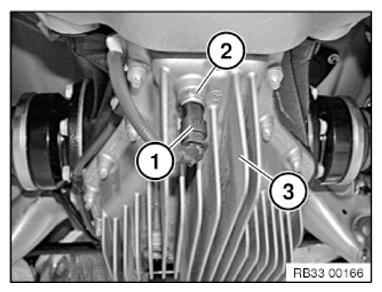

Fig 1: Identifying Plug Connection, Temperature Sensor And Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check OIL LEVEL , correct if required.
