23 00 037 Installing exchange transmission (GS6-53BZ)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check gearbox oil level . See 00 11 229 CHANGING/TOPPING UP/CHECKING GEAR OIL IN MANUAL TRANSMISSION .
Use only the approved transmission oil. Refer to OPERATING FLUIDS .

Failure to comply with this instruction will result in serious damage to the transmission.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations

Necessary preliminary tasks:

Drain transmission oil at oil drain plug.
Tightening torque 23 00 2AZ .
Remove transmission . See 23 00 018 REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) (N63) or 23 00 018 REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) (S63) .

Remove transmission support block from transmission.

Installation note:

Tightening torque 22 32 1AZ .

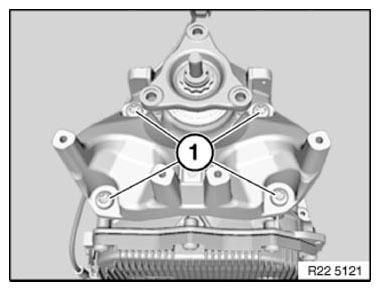

Fig 1: Identifying Transmission Bearing Block Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slide back retaining ring (1) and drive out cylinder pin (2).

Transfer gearshift rod joint.

Fig 2: Driving Out Cylinder Pin

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check damping disc (6) for damage and replace if necessary.

Fig 3: Identifying Damping Disc

Courtesy of BMW OF NORTH AMERICA, INC.

Convert following components from previous transmission to new transmission.

RELEASE BEARING AND RELEASE LEVER .
Ball pin and wire spring clip
Stud bolts for clutch slave cylinder
PULSE GENERATOR, CRANKSHAFT/TRANSMISSION
Transmission oil pump
REVERSING LIGHT SWITCH
Modify zero-gear sensor.
Tightening torque 23 14 2AZ .
Adjust zero-gear sensor

Reassemble the vehicle.

Check oil level.

Installation note:

Observe greasing specification.
