13 62 610 Replacing crankshaft/transmission pulse sensor (N63, S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of the DME control unit, work through test plans if necessary.
Switch off ignition.
Remove rear UNDERBODY PROTECTION .

Unlock connector (1) and remove.

Release screw (2).

Remove pulse generator (3).

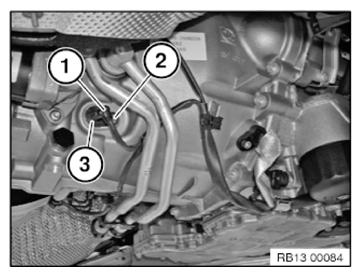

Fig 1: Identifying Pulse Generator, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Delete fault memory.

Reassemble the vehicle.
