34 11 220 Removing And Installing/Replacing Both Front Carbon Ceramic Brake Discs (CSiC)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 34 1 280
IMPORTANT:
It is imperative that you follow the GENERAL INFORMATION on handling the carbon ceramic brake (CSiC)!
Consult the BOUNDARY SAMPLES CATALOGUE to evaluate the visible quality of new carbon ceramic brake discs.
After completing repair work, read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .
Consult the BOUNDARY SAMPLES CATALOGUE to evaluate the visible quality of new carbon ceramic brake discs.
After completing repair work, read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .
Necessary preliminary tasks:
- Only remove wheels with the help of a WHEEL JACK!
Failure to comply with this stipulation may give rise to damage to the brake disc or brake caliper!
- Remove and clean/replace front BRAKE PADS .
NOTE:
Check the carbon ceramic brake discs for WEAR using the wear indicators.
Replacement of a single brake disc (at front or rear axle) is approved for repair operations.
We recommend replacing both brake discs on an axle (especially on the front) during repairs owing to the danger that the brakes will otherwise pull to one side during the running-in phased and the associated risk that a repeat repair will be necessary.
At the same time, it is not absolutely imperative from the technical perspective. The decision ultimately should be made on a case-by-case basis, according to the wear on the pads and their wear and contact patterns.
Replacement of a single brake disc (at front or rear axle) is approved for repair operations.
We recommend replacing both brake discs on an axle (especially on the front) during repairs owing to the danger that the brakes will otherwise pull to one side during the running-in phased and the associated risk that a repeat repair will be necessary.
At the same time, it is not absolutely imperative from the technical perspective. The decision ultimately should be made on a case-by-case basis, according to the wear on the pads and their wear and contact patterns.
IMPORTANT:
To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!

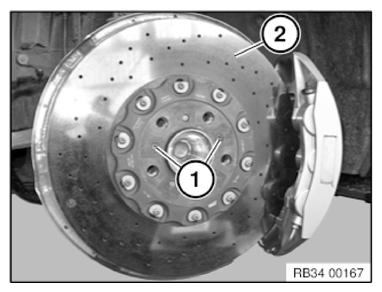

Release both screws (1) and carefully feed carbon ceramic brake disc (2) out of brake caliper!
NOTE:
Brake caliper is moved backwards on the stud bolt (see also REMOVING BRAKE CALIPER )!
If required, completely remove brake caliper and suspend on spring strut.
Installation note:
Replace screws.
Tightening torque: 34 11 1AZ .
