32 41 445 Replacing Return Line (From Cooler To Oil Reservoir)
WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.
Close off line connections with seal plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable collecting vessel.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from oil reservoir.
- Remove FAN COWL with electric fan (N57 only).
- Remove pressure pipe (N57).
- Removing intake port (N63/N55).
- Remove left CHARGE AIR DUCT (N55).

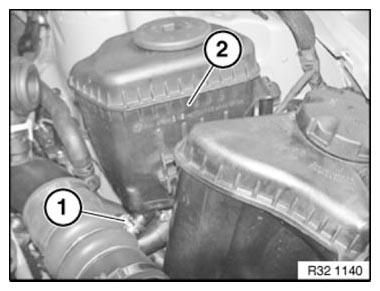

Release hose clamp (1) and detach cooler return line from fluid reservoir (2).
Installation note:
Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.
Expose cooler return line up to connection on power steering cooler.
Release QUICK-RELEASE COUPLING and seal power steering cooler connection with a suitable plug.
Installation note:
Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.
After installation:
- Carry out INITIAL DYNAMIC DRIVE OPERATION .
- Check pipe connections for leaks.
