84 10 050 Removing and installing (replacing) USB hub

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION FROM ELECTROSTATIC DISCHARGE .

Necessary preliminary work:

Remove TRIM PANEL FOR DOOR PILLAR, (BOTTOM) LEFT .

Disconnect plug connection (1).

Release screws (2) and remove USB hub (3).

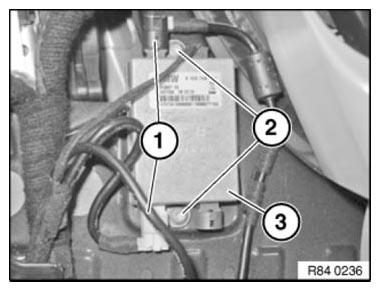

Fig 1: Identifying Plug Connection, Screws And USB Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
