51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary work:
- Remove FRONT DOOR SILL COVER STRIP
- Remove REAR DOOR SILL COVER STRIP
NOTE:
Shown removed here for purposes of clarity.

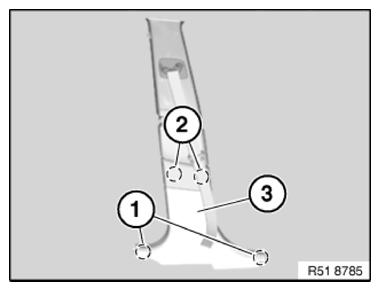

Remove edge protection in area of trim panel (3).
Unclip clips (1) from trim panel (3) in upward direction.
Unclamp clamps (2) towards inside.
If necessary disconnect plug connections located behind them.
Installation note:
Clips (1) and (2) must not be damaged.

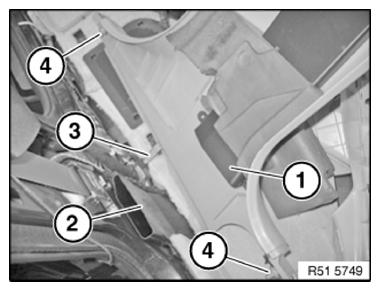

Installation note for trim panel with air duct:
Air duct (1) must be correctly engaged in associated air duct (2).
Guide lug (3) must be correctly inserted in associated guide in floor pan.
All plastic clips (4) must be undamaged.

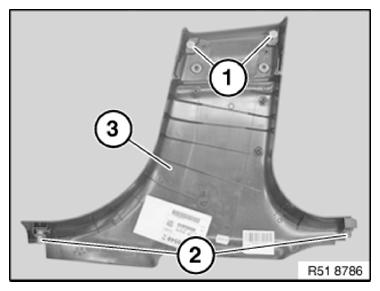

Replacement
Reposition clips (1) and (2) on door post trim panel (3).
