84 50 565 Replacing Bluetooth cable aerial

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a Combox is installed, the Bluetooth aerial is in the wiring harness to the Combox.
If a headunit is installed, the Bluetooth aerial is in the wiring harness to the headunit.

Bluetooth cable aerial installation location when Combox is installed.

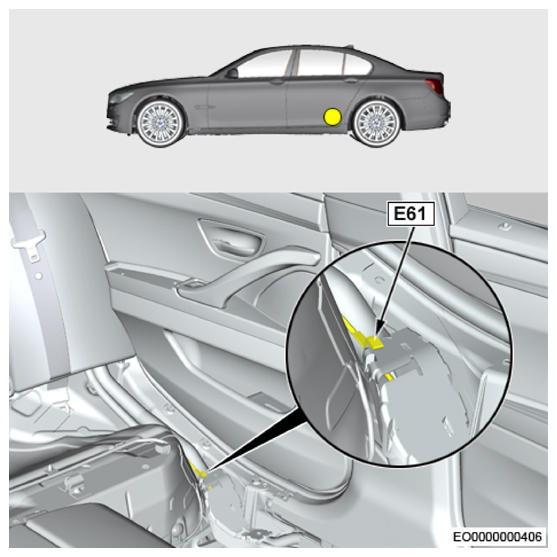

Fig 1: Identifying Bluetooth Cable Aerial Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Remove REAR LEFT DOOR SILL COVER STRIP .

Lay floor trim (1) to one side.

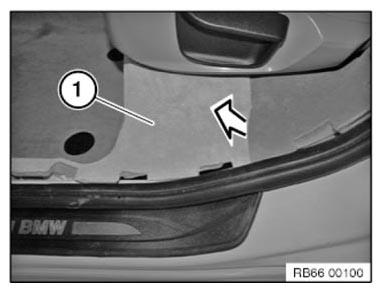

Fig 2: Removing Floor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove luggage compartment floor trim panel.

NOTE: Unlock and disconnect plug connection (1) of Bluetooth cable aerial (2) at Combox.

Secure Bluetooth cable aerial repair kit to wiring harness and close plug connection (1).

After successful completion of function check, disconnect start and end of faulty Bluetooth cable aerial at first mounting point.

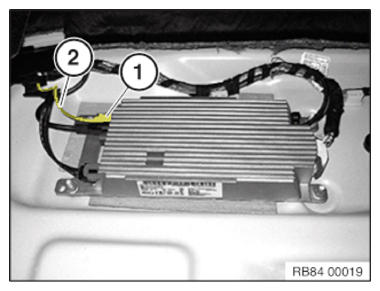

Fig 3: Identifying Plug Connection And Bluetooth Cable Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

Bluetooth cable aerial installation location when headunit is installed.

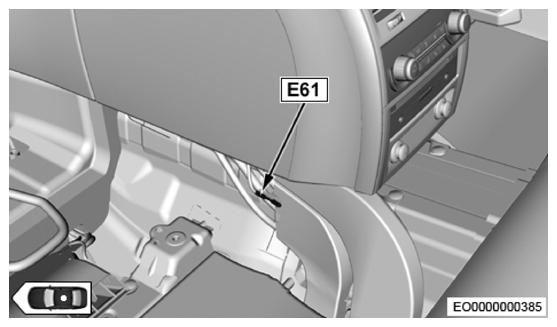

Fig 4: Bluetooth Cable Aerial Installation Location

Courtesy of BMW OF NORTH AMERICA, INC.

Remove CENTER CONSOLE (2).

Unclip Bluetooth cable aerial (1).

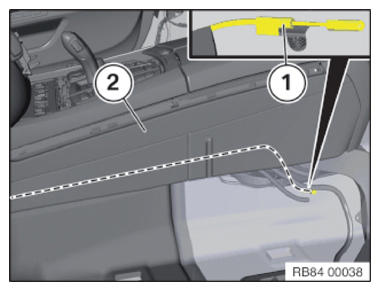

Fig 5: Identifying Bluetooth Cable Aerial And Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Remove HEADUNIT .

NOTE: Unlock and disconnect plug connection (1) of Bluetooth cable aerial to headunit.

Secure Bluetooth cable aerial repair kit to wiring harness for center console and close plug connection (1).

After successful completion of function check, disconnect start and end of faulty Bluetooth cable aerial at first mounting point.

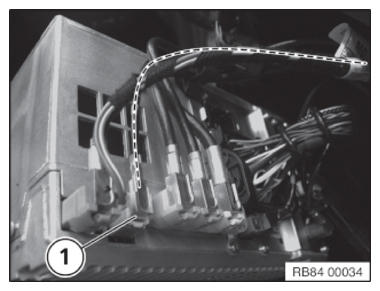

Fig 6: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
