84 21 535 Removing and installing (replacing) handsfree charging electronics (optional extra SA644)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION FROM ELECTROSTATIC DISCHARGE .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD .
IF NECESSARY, REMOVE AMPLIFIER .

Remove left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Installation:

Make sure cover (1) and flap (2) are correctly seated.

Fig 1: Identifying Luggage Compartment Flap And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left shelf support (3).

Installation:

Expanding rivets (2) must not be damaged.

Fig 2: Identifying Expanding Rivets, Nuts And Shelf Support

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Remove hands-free charging electronics (3).

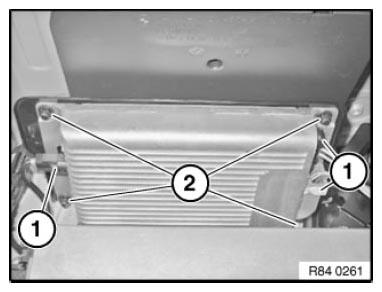

Fig 3: Identifying Plug Connections, Nuts And Hands-Free Charging Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
If necessary, log mobile phone on to vehicle.
