65 12 071 Removing and installing/replacing amplifier

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Installation note:

Make sure lid (1) and flap (2) are correctly seated.

Fig 1: Identifying Luggage Compartment Flap And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left shelf support (3).

Fig 2: Identifying Nuts, Expanding Rivets And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove amplifier (4) including holder (2).

Unfasten plug connections (3) and disconnect.

Replacement

Remove amplifier (4) including holder (3).

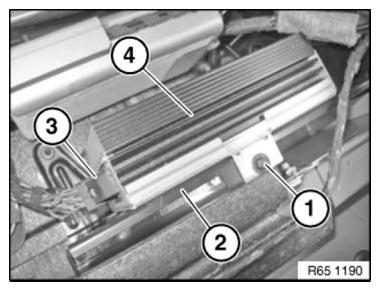

Fig 3: Identifying Amplifier, Holder, Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

Fig 4: Identifying Amplifier, Guide And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

For vehicle with production date up to 09/2010 , carry out conversion in the diagnosis system via path:

Vehicle
Conversions
Conversion hi-fi system

NOTE: On vehicle with production date after 09/2010 , no vehicle programming/encoding needs to be carried out!
