72 11 297 Removing and installing/replacing rear center lower strap fitting
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SEAT BACKREST FRAME

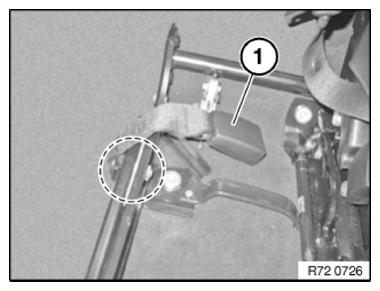

Release bolt in marked area from underneath.
Tightening torque 72 11 22AZ .
Installation:
Lower strap fitting (1) is encoded to prevent incorrect installation.
