72 11 101 Removing and installing/replacing rear center seat belt

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left REAR SEAT
Remove LEFT BACKREST COVER

Release screw (1).

Tightening torque 72 11 21AZ .

Installation:

End fitting is coded against incorrect assembly.

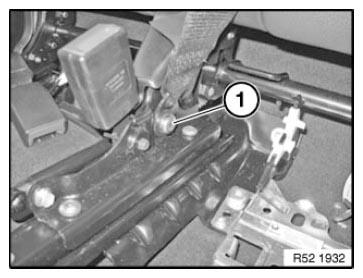

Fig 1: Identifying Rear Center Seat Belt Screw

G08487077

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2).

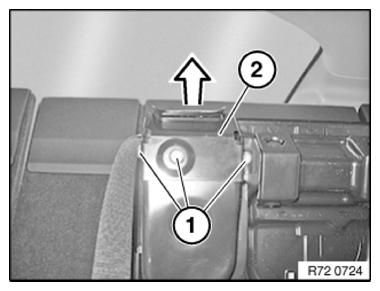

Fig 2: Removing Backrest Cover

G09882029

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 20AZ .

Remove automatic reel with anchor fitting.

Installation:

Automatic reel is coded against incorrect installation.

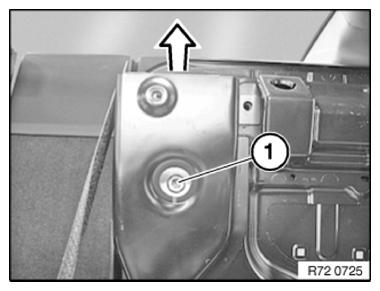

Fig 3: Identifying Backrest Cover Screw

G09882030

Courtesy of BMW OF NORTH AMERICA, INC.
