72 12 050 Removing and installing side airbag, front seat (version 2)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
WARNING:
Observe SAFETY REGULATIONS for handling airbag modules and pyrotechnical seat belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised and, in an extreme situation, it can no longer execute its protective function.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised and, in an extreme situation, it can no longer execute its protective function.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE CABLE
- Remove rear panel on front seat. See NORMAL SEAT , SPORT SEAT , or COMFORT SEAT .
Detach backrest cover (1) in the marked area.

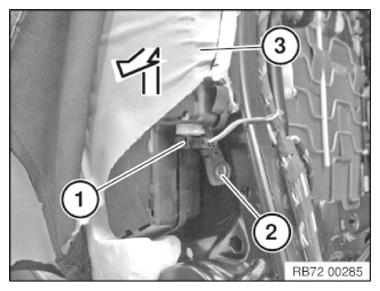

Unlock PLUG CONNECTION (1) and disconnect.
Drill out rivet head (2).
Remove airbag module in direction of arrow.
Feed out airbag module from cover (3).
Installation note:
Fully remove rivet remnants.
Airbag module is coded against incorrect assembly.
