65 77 740 Removing and installing (replacing) left front door sensor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe AIRBAG SAFETY REGULATIONS !
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Remove SOUND INSULATION IN FRONT DOOR

Release screw (1).

Tightening torque 65 77 4AZ .

Feed out sensor towards bottom.

Unlock associated plug connection and disconnect.

Remove sensor.

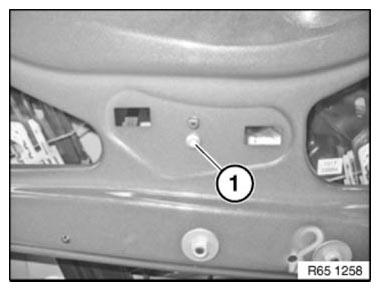

Fig 1: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: A new sensor and a modified door are installed in vehicles with a production date after 07/2011. Only the following combinations are permitted:

	Sensor version		Door version
	up to 07/2011	from 07/2011	up to 07/2011	from 07/2011
Vehicle production date before 07/2011	Yes	No	Yes	Yes
Vehicle production date after 07/2011	No	Yes	No	Yes

Fig 2: Identifying Front Door Sensor And Guide Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure front door sensor (1) is in correct installation position.

Guide lug (2) must be correctly seated in corresponding mounting on front door.

Front door sensor (1) must not be installed on a slant!
