65 77 720 Removing and installing (replacing) left B-pillar sensor (older version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY REGULATIONS!
Incorrect handling can activate airbag and cause injury.

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE
Remove TRIM PANEL FOR DOOR POST .

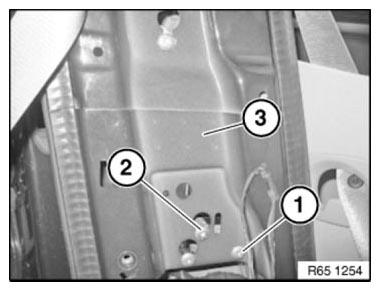

Release screw (1) on B-pillar (3).

Loosen screw (2).

Installation note:

Tightening torque 65 77 3AZ .

Make sure sensor is mounted without play.

Feed out B-pillar sensor in downward direction.

Fig 1: Identifying Screw And B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

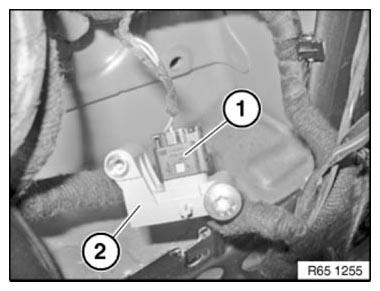

Unlock plug connection (1) and disconnect.

Remove B-pillar sensor (2).

Fig 2: Identifying Plug Connection And B-Pillar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
