65 77 720 Removing and installing (replacing) left B-pillar sensor (newer version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY REGULATIONS!
Incorrect handling can activate airbag and cause injury.

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE
Remove TRIM PANEL FOR DOOR POST .

Release screw (1).

Tightening torque 65 77 3AZ .

Feed out the B-pillar sensor (2) downwards.

Installation note:

Make sure B-pillar sensor (2) is correctly seated in guide (3).

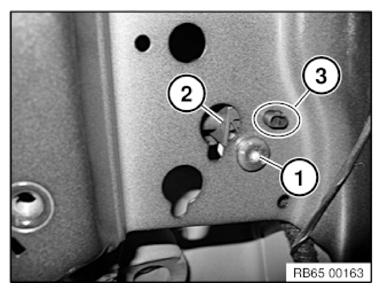

Fig 1: Identifying Screw, Guide And B-Pillar Sensor

G09881808

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Remove B-pillar sensor (2).

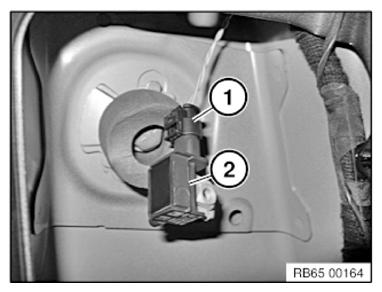

Fig 2: Identifying Plug Connection And B-Pillar Sensor

G09881809

Courtesy of BMW OF NORTH AMERICA, INC.

On version with: REMA - reversible electromotive automatic reel

Release screws (1).

Tightening torque 72 11 01AZ

Installation note:

Replace screws.

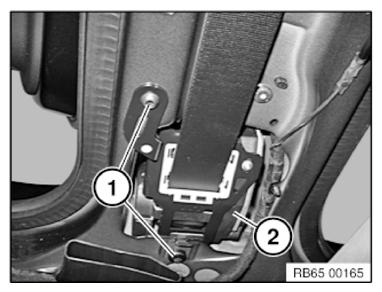

Fig 3: Identifying Screws And Automatic Reel

G09881810

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock automatic reel (2) and remove from B-pillar.

Installation note:

Automatic reel (2) is encoded against incorrect installation.

Unlock plug connection (1) and disconnect.

Lay automatic reel (2) to the side.

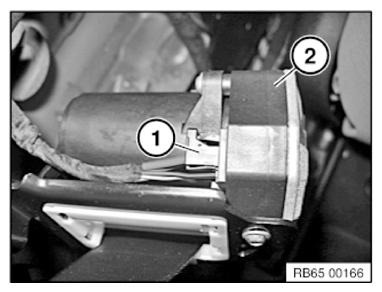

Fig 4: Identifying Plug Connection And Automatic Reel

G09881811
