65 77 604 Replacing seat occupancy mat for front passenger seat occupancy detector
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
US/CDN front passenger seat (with CIS mat) only:
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.
After fitting seat cover, enable CIS mat with BMW DIAGNOSIS SYSTEM .
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.
After fitting seat cover, enable CIS mat with BMW DIAGNOSIS SYSTEM .
Necessary preliminary tasks:
- Remove seat cover for front passenger seat. See NORMAL/ELECTRIC SEAT , SPORTS SEAT , or COMFORT SEAT .
NOTE:
Graphic is an example.

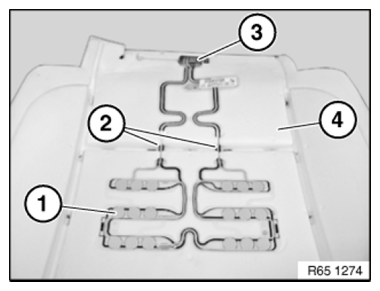

Pull seat occupancy mat (1) off front passenger seat upholstery (4) and feed out connector housing (3).
Installation note:
- To avoid malfunctions, make sure seat occupancy mat (1) is cleanly laid:
Courtesy of BMW OF NORTH AMERICA, INC.
- Lay connector housing (3) in designated recess
- Lay seat occupancy mat bridges (2) cleanly and feed into designated recesses
- Secure seat occupancy mat (1) to bonding surface
- Lay seat occupancy mat (1) straight and without kinks
