65 77 532 Removing and installing/replacing front left sensor (only US version and Korean version from 07/2013)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Front left sensor is only installed in following national-market versions
- US version
- European version for Korea (only F10 from 07/2013)
Necessary preliminary tasks:
- REMOVE front left wheel arch cover
NOTE:
This work step varies according to engine type.

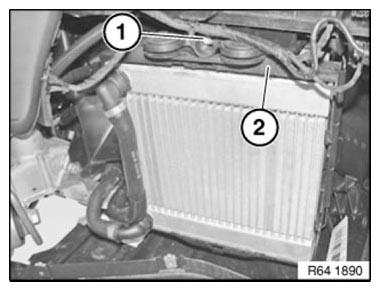

Release screw (1) on auxiliary radiator holder (2).
Remove holder (2) and carefully place to one side.
Installation note:
Holder (2) must be correctly seated in the designated guides.

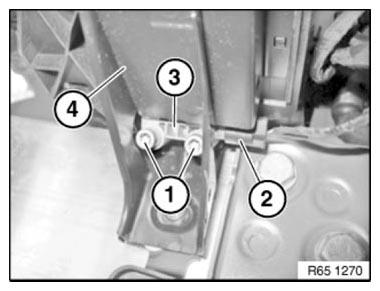

Release screws (1) on lock carrier (2).
Tightening torque 65 77 2AZ .
Feed out sensor (3).
Unfasten plug connection (2) and disconnect.
Installation note:
Make sure sensor (3) is in correct installation position.
Sensor surface must point upwards.
Plug connection (2) must point in opposite direction to direction of travel.
