65 77 016 Removing and installing/replacing airbag control unit

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS!
Incorrect handling can activate airbag and cause injury.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Clamp off BATTERY EARTH LEAD
Remove RIGHT GLOVE BOX WITH HOUSING

Release screw (1).

Tightening torque 65 77 1AZ .

Press airbag control unit (2) out of rubber mounts (3).

Unlock plug connections (4) and disconnect.

Remove airbag control unit (2).

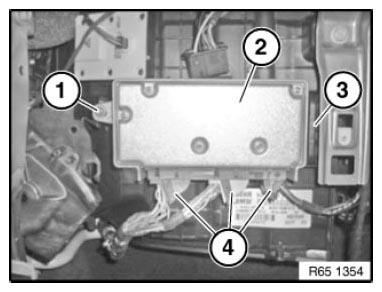

Fig 1: Identifying Screw, Airbag Control Unit And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure guides (1) are correctly seated in rubber mount (2).

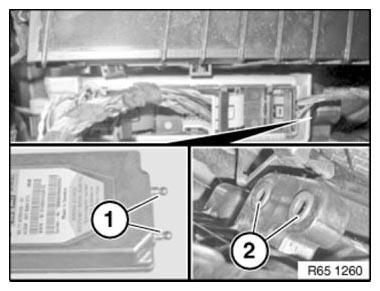

Fig 2: Identifying Guides And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
