65 50... Removing and installing/replacing friction hinges for rear cabin monitor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)

Do not damage or scratch display.

Necessary preliminary tasks:

Remove REAR CABIN MONITOR

Release screws (1).

Tightening torque 65 50 1AZ .

Remove cover (3) from rear cabin monitor (4), unclipping plug (2) and feed out cable.

Installation:

Make sure cover (3) is correctly seated on rear cabin monitor (4).

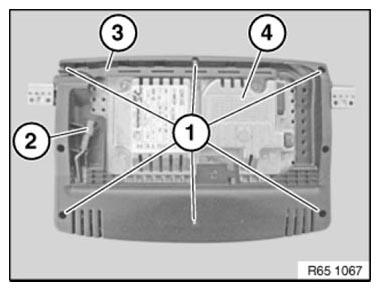

Fig 1: Identifying Screws, Cover, Plug And Rear Cabin Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 65 50 2AZ .

Remove friction hinges (1) from rear cabin monitor (3).

Installation:

Observe gap dimension adjustment when screwing friction hinges (2) to rear cabin monitor (3) on left and right.

Gap dimensions:

0.9 mm
1.5 mm

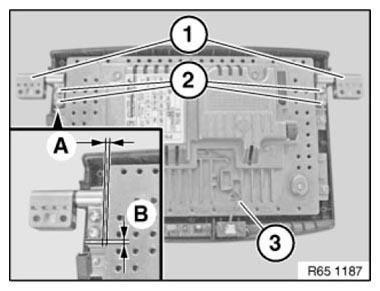

Fig 2: Identifying Gap Dimension Of Friction Hinges To Rear Cabin Monitor
