65 50 125 Removing and installing/replacing left or right rear monitor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Installation note:

Remove REAR PASSENGER COMPARTMENT MONITOR COVER

Release screws (1).

Tightening torque 65 50 2AZ .

Remove rear passenger compartment monitor (2) from holder (3).

Installation note:

Make sure rear passenger compartment monitor (2) is correctly seated on holder (3).

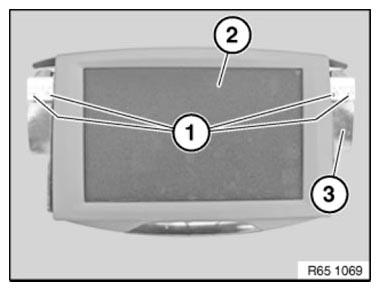

Fig 1: Identifying Screws, Holder And Rear Passenger Compartment Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections and disconnect.

Remove monitor in rear (1).

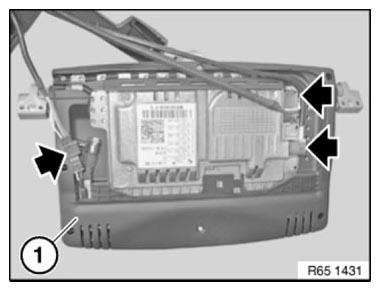

Fig 2: Locating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
