65 50 170 Replacing cover for Central Information Display (CID, TPO)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: These repair instructions apply to the Central Information Display (CID) of the manufacturer TPO.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove CENTRAL INFORMATION DISPLAY

Release screws at marked points.

Tightening torque 65 50 3AZ .

NOTE: To tighten screws, use special tool 00 9 460 .

Remove rear cover (1) of central information display (2).

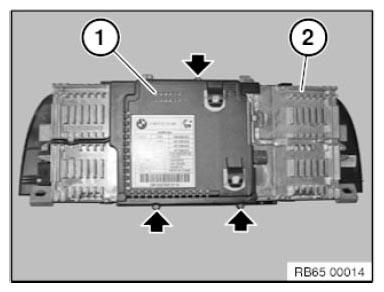

Fig 1: Locating Screws At Marked Points

Courtesy of BMW OF NORTH AMERICA, INC.

Detach adhesive tape fixation (1).

Installation note:

A new adhesive tape is included with the replacement part delivery.

Disconnect plug connection (2).

IMPORTANT: Risk of damage!

The wiring harness (4) can be crushed by the cover (3) at the position marked by the arrow!

Installation note:

The adhesive tape (1) of the wiring harness (4) must be applied before installation of the cover (3)!

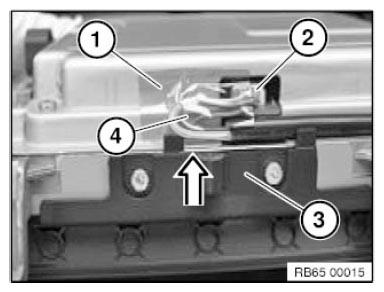

Fig 2: Detaching Adhesive Tape Fixation

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws at marked positions.

Tightening torque 65 50 2AZ .

NOTE: To tighten screws, use special tool 00 9 450 .

Feed out cable (2) from guides.

Installation note:

Ensure correct cable routing (2).

Carefully raise latch mechanisms (1) and remove central information display cover (3).

Installation note:

Make sure latch mechanisms (1) are heard to click into place.

Make sure cover (3) is correctly seated on central information display.

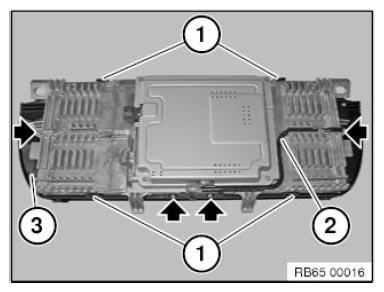

Fig 3: Locating Screws Of Central Information Display Cover

Courtesy of BMW OF NORTH AMERICA, INC.
