65 50 030 Removing and installing/replacing TV module

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Follow notes for HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Remove SHOULDER TRIM PANEL, LEFT

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Fig 1: Identifying Luggage Compartment Flap And Trim Panel

G08487934

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lever out expanding rivet (2).

Remove left floor panel support (3).

Fig 2: Identifying Nuts, Expanding Rivet And Floor Panel Support

G08487935

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expanding rivet (1).

Carefully raise wheel arch trim panel (2) a little on left of luggage compartment.

Fig 3: Identifying Expanding Rivet And Wheel Arch Trim Panel

G08485372

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove bracket (2).

Fig 4: Identifying Screws And Bracket

G08485373

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

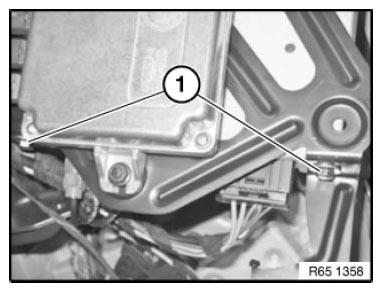

Fig 5: Identifying Screws

G08485281

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove TV module (2).

Unlock plug connections and disconnect.

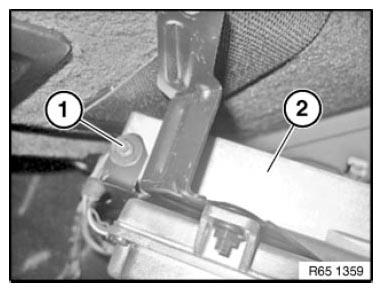

Fig 6: Identifying Screw And TV Module

G08485282
