65 81 060 Remove and installing/replacing outside temperature sensor (N54, N55, N63, N74, N57S)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Remove FRONT RIGHT WHEEL ARCH COVER (front section)

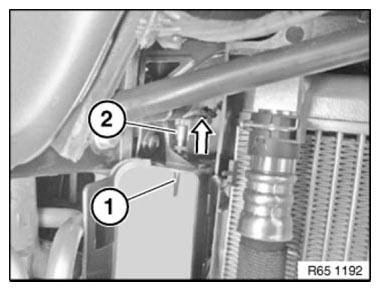

Unclip outside temperature sensor (1) in direction of arrow from mounting and pull out.
Disconnect plug connection (2) and remove outside temperature sensor (1).
Installation:
Clip temperature sensor (1) into place.
Close plug connection (2).
Make sure outside temperature sensor (1) is correctly engaged in mounting.
