66 54 005 Removing and installing/replacing control unit for Night Vision System

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Disconnect BATTERY CABLE .
Remove FOLD-DOWN COMPARTMENT ON DRIVER'S SIDE .

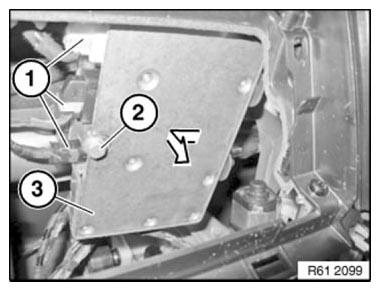

Release plug connections (1) and disconnect.

Release bolt (2) and remove control unit (3) in direction of arrow.

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

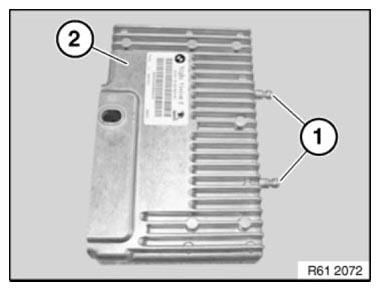

Guides (1) on control unit (2) must be seated correctly in the correct bracket.

Fig 2: Identifying Guides On Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out VEHICLE PROGRAMMING AND ENCODING .

NOTE: New component contains a CD with de-blocking code.
CD is requested during encoding/programming by the SSS.
