51 16 355 Removing and installing/replacing driver's side fold-down compartment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Release screws (1).

Tightening torque 51 45 6AZ .

Remove fold-down compartment on driver's side (2) in direction of arrow while unclipping or detaching at the bottom

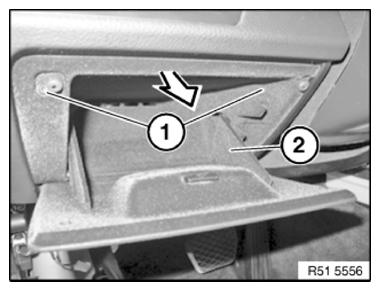

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure driver's side fold-down compartment (2) is correctly seated.

In F01/02/03 only:

Replace defective retainers (1).

Replacement

In F01/02/03 only:

Remount clamps (1).

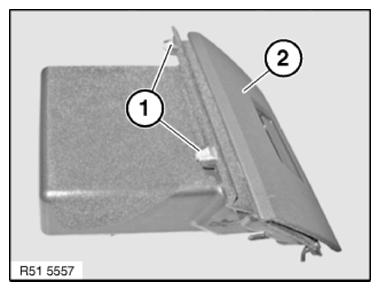

Fig 2: Identifying Defective Retainers And Clamps
Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03 only:

Release screws (1) and remount fold-down compartment handle.

Tightening torque 51 45 7AZ .

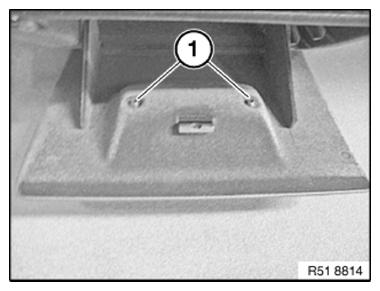

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.
