63 13 080 Removing and installing/replacing left turn indicator insert (from 07/13)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

Release screws.

Tightening torque 63 12 6AZ .

Remove turn indicator insert (1) from headlight.

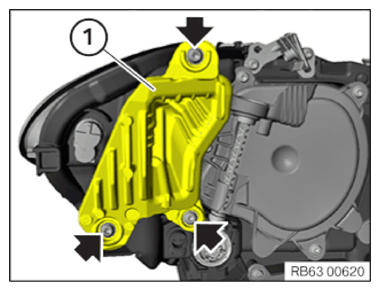

Fig 1: Identifying Turn Indicator Insert And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on turn indicator insert (3) and disconnect.

Installation note:

Ensure gasket (2) is fitted correctly.

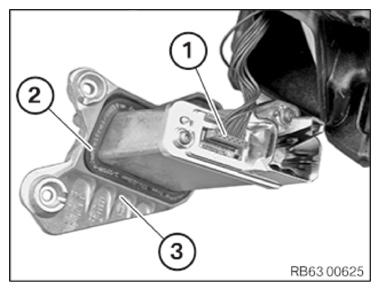

Fig 2: Identifying Turn Indicator Insert, Gasket, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
