63 31... Removing and installing/replacing front left or right top door trip panel fiber optic conductor

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fiber optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL
Work station with cleaner working surface

Top fiber optic conductor below decorative strip

Use special tool 64 1 020 to unclip fiber optic conductor (2) from door trim panel (1) at the fastening clips (3) with light rotating movement.

Installation:

Make sure fiber optic conductor (1) correctly locks at fastening clips (3).

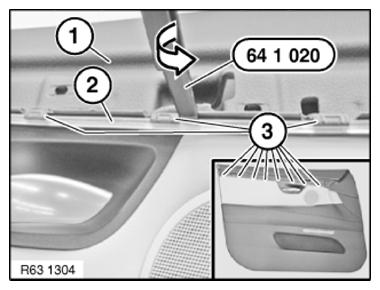

Fig 1: Identifying Fiber Optic Conductor, Door Trim Panel, And Fastening Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Pull LED-module (1) out of bracket (2).
Carefully pull LED-module (1) from fiber optic conductor (2).

Installation:

LED-module (1) must lock into position (light distribution).

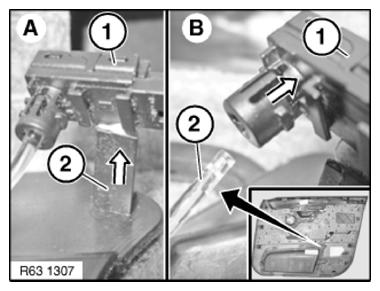

Fig 2: Pulling LED Module Out Of Bracket And Pulling LED Module From Fiber Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.

Feed fiber optic conductor (1) out of door trim panel (2) in direction of arrow and remove.

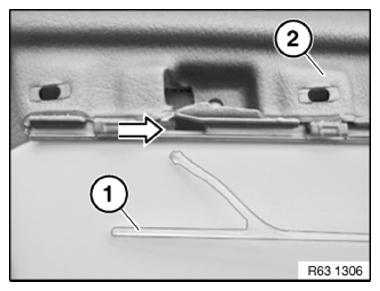

Fig 3: Feeding Fiber Optic Conductor Out Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check fiber optic conductor (1) for damage (scratches or cracks), replace if necessary.

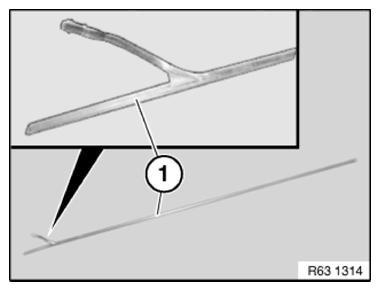

Fig 4: Identifying Fiber Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
