63 11 845 Replacing left LED fan (inner)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 296 785

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY

Release screws (1) and remove protective cap (2).

Tightening torque 63 11 6AZ

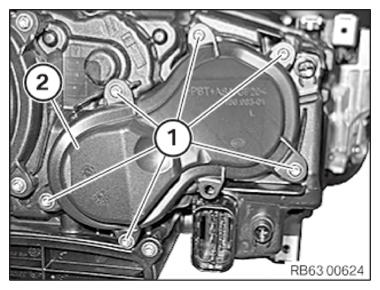

Fig 1: Identifying Protective Cap Screws

G09881297

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs on protective cap (1) must not be damaged or missing.

Gasket (2) must not be damaged and must be installed free from grease.

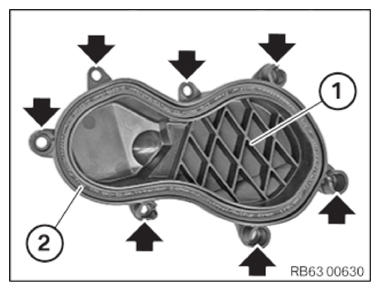

Fig 2: Identifying Protective Cap Gasket And Retaining Tabs

G09881298

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (2) with special tools 2 296 785 and remove fan (3).

Tightening torque 63 11 6AZ

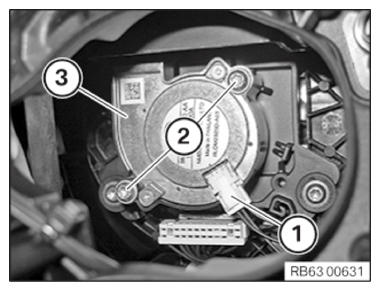

Fig 3: Identifying Fan, Screws, And Connector

G09881299

Courtesy of BMW OF NORTH AMERICA, INC.
